- RS庫存編號:
- 817-9876
- 製造零件編號:
- 162-20250 SPF25-PP-BK
- 製造商:
- HellermannTyton
- RS庫存編號:
- 817-9876
- 製造零件編號:
- 162-20250 SPF25-PP-BK
- 製造商:
- HellermannTyton
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- DK
產品詳細資訊

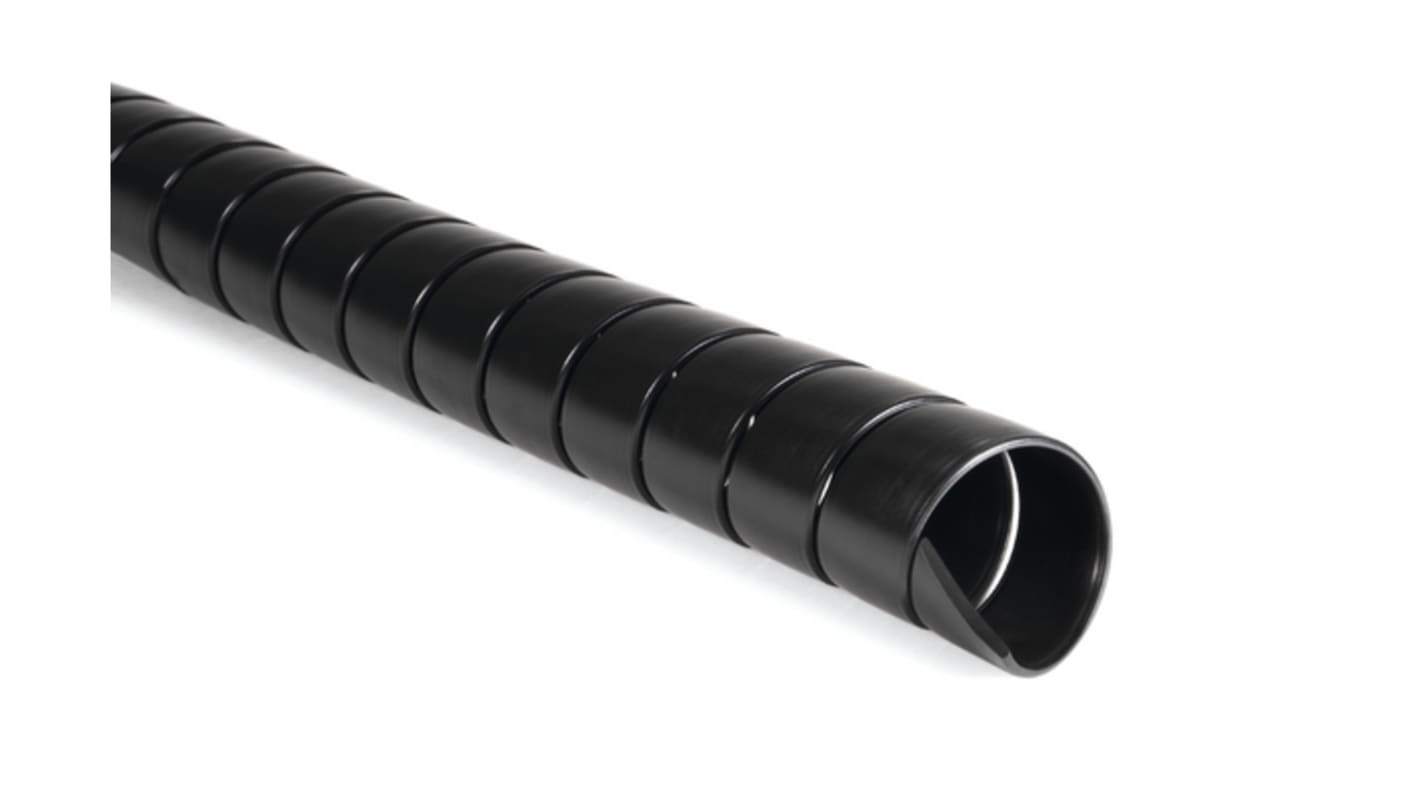

Spiral Wrapping SPF
SPF Spiral wrapping is ideal for use in areas where stable cable insertion and abrasion resistance are important. SPF is suited for the wind industry, plant construction and petrochemical industries.
Robust and heavy walled
High protection from mechanical stress
Excellent abrasion resistance
Oil Resistant
Ideal for larger cable bundles
Diameters up to 50mm
High protection from mechanical stress
Excellent abrasion resistance
Oil Resistant
Ideal for larger cable bundles
Diameters up to 50mm
Standards
UL94 HB, HF, RoHS
規格
屬性 | 值 |
---|---|
Minimum Cable Diameter | 25mm |
Maximum Cable Diameter | 29mm |
Colour | Black |
Internal Diameter | 25mm |
Material | PP |
Maximum Bundle Diameter | 29mm |
Minimum Operating Temperature | -30°C |
Maximum Operating Temperature | +100°C |
Wall Thickness | 2mm |
Length | 1m |
Series | SPF |
